10' Clear Filter Housing With 1/4" NPT Port For Water Filter Systems

$9.95

Add to Wishlist

IN Stock

12

Loyalty Point

Share

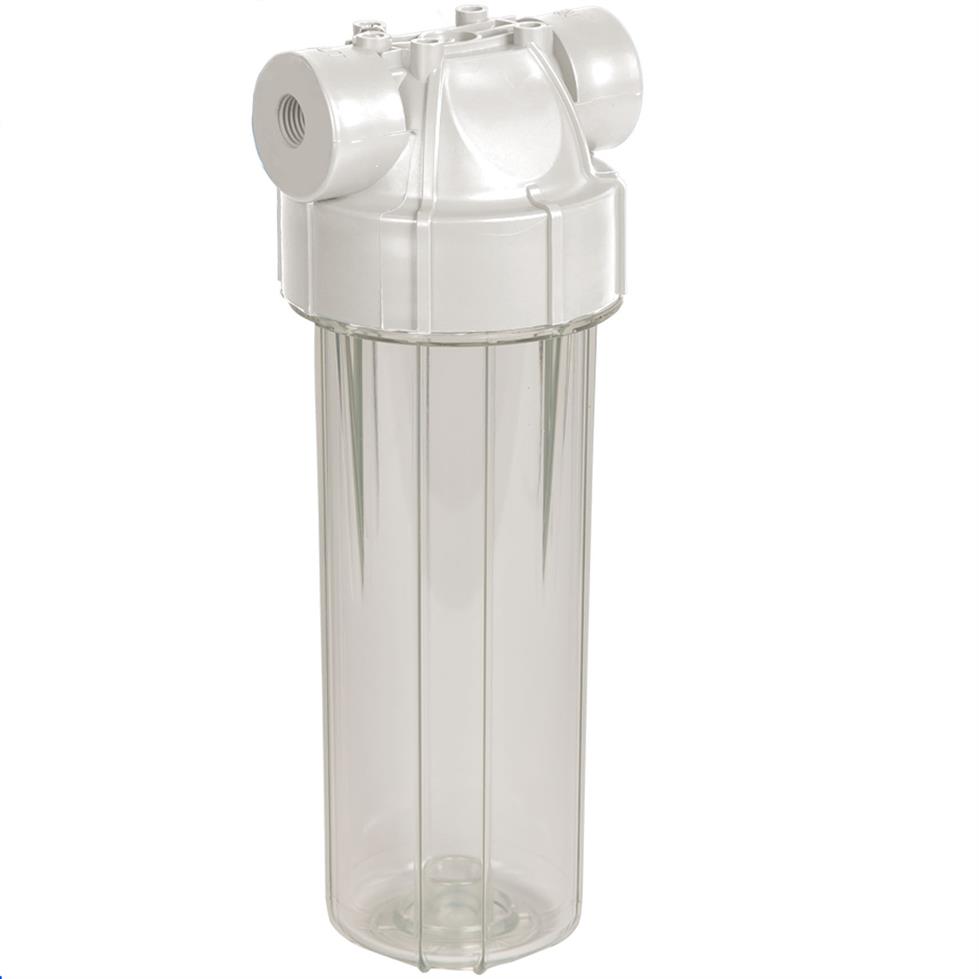

Filter Housing 10' Clear

Standard Filter Housing 10' Clear, consists of two parts: a transparent sump, and head with NPT inlet/outled thread.

FHPLW can be used to bulid Reverse Osmosis and undersink, Under-counter filtration systems.

The design in combination with two O-rings (one inside filter head and second on the edge of filter sump), ensures maximum leak proof performance.

Specifications:

Clear Housing (sump): poly(ethylene terephtalate) (PET)

Color Housing (sump): polypropylene

Cap: polypropylene

O-ring: NBR Number of O-rings: 2

Operating Pressure: 6 bar (90 psi)

Minimum Working Temperature: 2ºC (35ºF)

Maximum Working Temperature: 45°C (113°F)

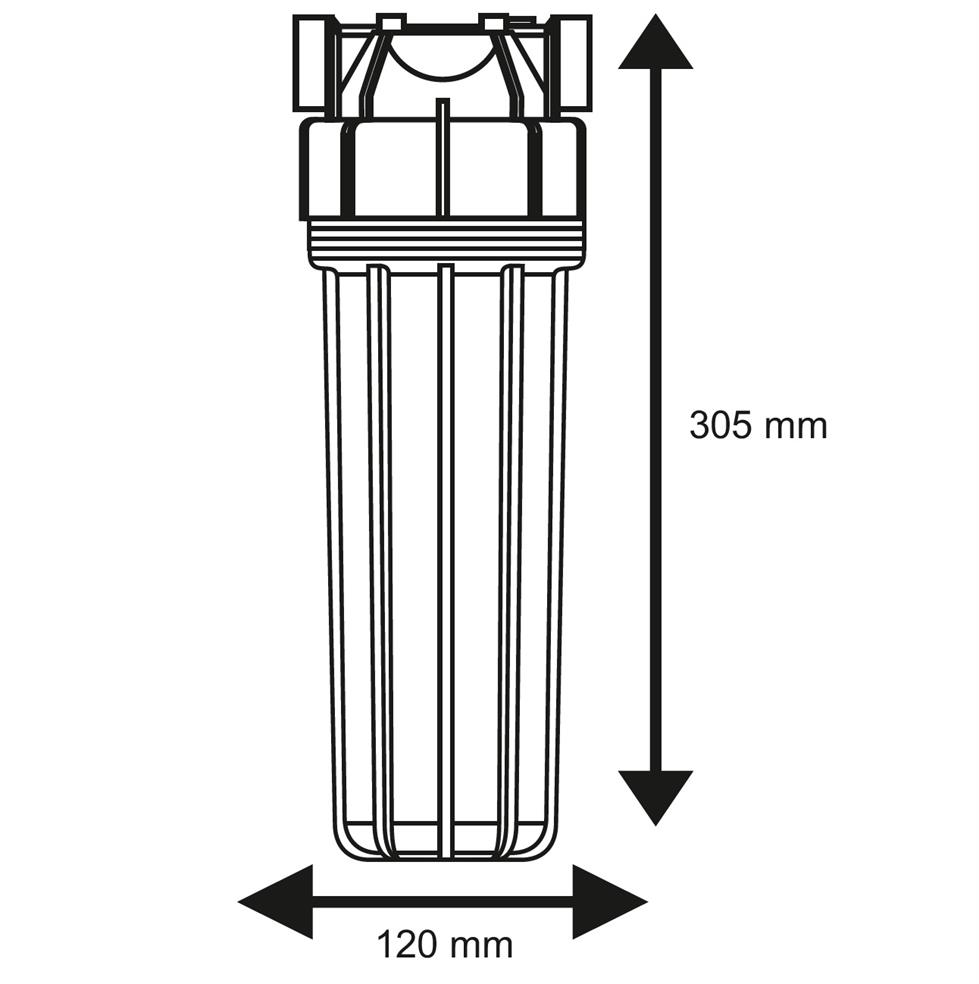

Dimensions (H x OD): 305x 120 (mm)

Cartridge dimensions: 9 7/8" x 2 1/2" (250 mm x 65 mm)



Housing is available with several connection types:

FHPLW14-D - 1/4" NPT

FHPLW38-D - 3/8" NPT

NOTE - Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

- Replace the filter cartridge at least every 3, 6 or 12 months (depending on water quality and water consumption)

Weight 0.4 kg
Dimensions 12 x 2 x 30.5 cm
Model

FHPLW
